Spicer 3-4-06976-1X 1480 Series Half Round End Yoke

$182.24
Product Info
SKU:
DDP3-4-06976-1X
Condition:
New
Weight:
5.10 LBS
Current Stock: 1
Spicer 3-4-06976-1X 1480 Series Half Round End Yoke
Adding to cart… The item has been added
Spicer 3-4-06976-1X 1480 Series Half Round End Yoke
3-4-14841-1X, 5006976, 8C3Z4851C
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

3-4-06976-1X

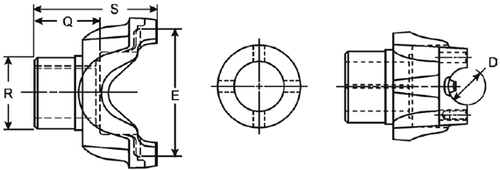

JOINT SERIES:
D DIMENSION:
E DIMENSION:
YOKE STYLE:
Q LENGTH THRU HOLE:
R HUB DIAMETER:
S CENTERLINE TO END:
SPLINE COUNT:39 I
SPLINE OD:2.024
NOTES:


Cross References:
Chrysler: 5006976, Chrysler: SP 5006976, Chrysler: SP 5006976HP, Daimler: SP 3 4 06976 1X, Ford: 5006976, Ford: 8C3Z 4851 C, International Harvester (IHC): 2599595C91, International Harvester (IHC): 5006976, International Harvester (IHC): D34069761X, International Harvester (IHC): D5006976, International Harvester (IHC): E34069761X, Navistar: 2517665C91, Navistar: 2599595C91, Navistar: 34148411X, Navistar: 3589252C91, Navistar: 5006976, Navistar: D34069761X, Navistar: DS34069761X, Navistar: E34069761X, Volvo Cars: 5006976, Volvo Cars: SP 5006976, 34069761X, F81Z4635CB, P3-4-06976-1X, 3-4-14841-1X
UPC:
00023913235284
Series:
1480
Material:
Steel
Prop 65:
No
Type:
Splined Hole
Spline Count:
39
Involute Spline:
Y
Hub Diameter R:
3.000
Length Thru Hole Q:
1.832
Yoke Style:
BS
C/L To End Hub S:
3.878
C-Bore Depth:
0.250
Yoke Bearing Dimension (In) D:
1.375
Major Diameter:
2.024
Outside Yoke Dimension (In) E:
4.188
