Spicer 3-4-3051-1 1480 Series Half Round End Yoke
3430511
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: SP 3 4 3051, Daimler: SP 3 4 3051 1HP, Dana Commercial Vehicle Service Parts: 3-4-3051, Freightliner Trucks: SP 3 4 3051, Freightliner Trucks: SP 3 4 3051 1HP, International Harvester (IHC): 3430511, International Harvester (IHC): D3430511, International Harvester (IHC): E3430511, McNeilus: 1386160, Navistar: 3430511, Navistar: D3430511, Navistar: DS3430511, Navistar: E343051, Navistar: E3430511, Peterbilt: 1386160, Pierce: 1386160, Volvo Cars: SP 3430511
3430511
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: SP 3 4 3051, Daimler: SP 3 4 3051 1HP, Dana Commercial Vehicle Service Parts: 3-4-3051, Freightliner Trucks: SP 3 4 3051, Freightliner Trucks: SP 3 4 3051 1HP, International Harvester (IHC): 3430511, International Harvester (IHC): D3430511, International Harvester (IHC): E3430511, McNeilus: 1386160, Navistar: 3430511, Navistar: D3430511, Navistar: DS3430511, Navistar: E343051, Navistar: E3430511, Peterbilt: 1386160, Pierce: 1386160, Volvo Cars: SP 3430511
- UPC:
- 00023913219819
- Series:
- 1480
- Material:
- Steel
- Prop 65:
- No
- Type:
- Splined Hole
- Spline Count:
- 10
- Involute Spline:
- N

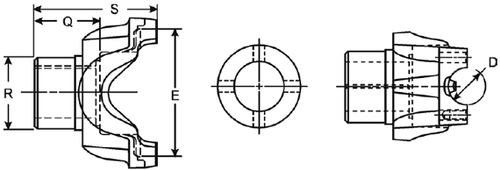

- Hub Diameter R:
- 2.598
- Length Thru Hole Q:
- 1.859
- Yoke Style:
- BS
- C/L To End Hub S:
- 4.525
- Joint Angle #1:
- 35
- Major Diameter:
- 1.972
