Spicer 90-4-391-1 SPL90 Series Half Round Yoke
Cross References:
Daimler: 680 411 22 11, Daimler: SP 90 4 391 1, Daimler: SP 90 4 391 1HP, Dana Commercial Vehicle Service Parts: 2104-9043911, Dana Commercial Vehicle Service Parts: 4.9-4-391-1, Eaton: 5505529, Freightliner Trucks: 680 411 22 11, Freightliner Trucks: SP 90 4 391 1, Freightliner Trucks: SP 90 4 391 1HP, Hino: 373246510A, Hino: 37324-6510A, Hino: S3732-46510, International Harvester (IHC): 3529626C1, International Harvester (IHC): D9043911, International Harvester (IHC): E9043911, International Harvester (IHC): T9043911, Mack: 2104-9043911, Navistar: 3529626C1, Navistar: D9043911, Navistar: DS9043911, Navistar: E9043911, Navistar: T9043911, Paccar Parts: 90-4-391-1, Peterbilt: 1364383, UAP: 90-4-391-1, Volvo Cars: 2104-9043911, Volvo Cars: SP 9043911, P90-4-391-1, 9043911
Cross References:
Daimler: 680 411 22 11, Daimler: SP 90 4 391 1, Daimler: SP 90 4 391 1HP, Dana Commercial Vehicle Service Parts: 2104-9043911, Dana Commercial Vehicle Service Parts: 4.9-4-391-1, Eaton: 5505529, Freightliner Trucks: 680 411 22 11, Freightliner Trucks: SP 90 4 391 1, Freightliner Trucks: SP 90 4 391 1HP, Hino: 373246510A, Hino: 37324-6510A, Hino: S3732-46510, International Harvester (IHC): 3529626C1, International Harvester (IHC): D9043911, International Harvester (IHC): E9043911, International Harvester (IHC): T9043911, Mack: 2104-9043911, Navistar: 3529626C1, Navistar: D9043911, Navistar: DS9043911, Navistar: E9043911, Navistar: T9043911, Paccar Parts: 90-4-391-1, Peterbilt: 1364383, UAP: 90-4-391-1, Volvo Cars: 2104-9043911, Volvo Cars: SP 9043911, P90-4-391-1, 9043911
- UPC:
- 00023913248765
- Series:
- SPL90
- Material:
- Steel
- Prop 65:
- Yes
- California Proposition 65:
- WARNING: Cancer - www.p65warnings.ca.gov
- Type:
- Splined Hole
- Spline Count:
- 38
- Involute Spline:
- I

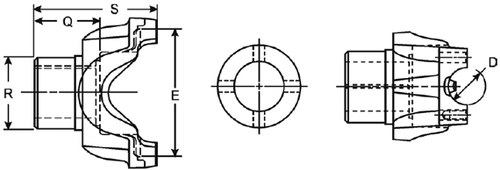

- Hub Diameter R:
- 2.750
- Length Thru Hole Q:
- 2.125
- Yoke Style:
- BS
- C/L To End Hub S:
- 4.250
- Joint Angle #1:
- 15
- Assembly:
- N
- Includes Slinger/Plug:
- N
- Yoke Bearing Dimension (In) D:
- 1.625
- Major Diameter:
- 1.998
- Outside Yoke Dimension (In) E:
- 5.375
