Spicer 6-82-1341-13 1710 Series Yoke Shaft 16Spl
682134113
PLEASE USE THE DANA ONILNE CENTER YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Blue Bird: 1121607, Daimler: SP 6 82 1341 13HP, Daimler: SP 6 82 1341-13, Dana Commercial Vehicle Service Parts: 6-82-1091-2, Freightliner Trucks: SP 6 82 1341 13, Freightliner Trucks: SP 6 82 1341 13HP, Freightliner Trucks: SP 6 82 1341-13, Gillig Corp.: 82-31995-000, International Harvester (IHC): 682134113, International Harvester (IHC): D682134113, International Harvester (IHC): E682134113, Mack: 2104-682134113, Meritor: 17N8210912, Navistar: 682134113, Navistar: D682134113, Navistar: DS682134113, Navistar: E682134113, Paccar Parts: 6-82-1341-13, UAP: 6-82-1341-13, Volvo Cars: 30006-0025, Volvo Cars: SP 682134113, P6-82-1341-13
682134113
PLEASE USE THE DANA ONILNE CENTER YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Blue Bird: 1121607, Daimler: SP 6 82 1341 13HP, Daimler: SP 6 82 1341-13, Dana Commercial Vehicle Service Parts: 6-82-1091-2, Freightliner Trucks: SP 6 82 1341 13, Freightliner Trucks: SP 6 82 1341 13HP, Freightliner Trucks: SP 6 82 1341-13, Gillig Corp.: 82-31995-000, International Harvester (IHC): 682134113, International Harvester (IHC): D682134113, International Harvester (IHC): E682134113, Mack: 2104-682134113, Meritor: 17N8210912, Navistar: 682134113, Navistar: D682134113, Navistar: DS682134113, Navistar: E682134113, Paccar Parts: 6-82-1341-13, UAP: 6-82-1341-13, Volvo Cars: 30006-0025, Volvo Cars: SP 682134113, P6-82-1341-13
- UPC:
- 00023913214180
- Series:
- 1710
- Prop 65:
- No
- Style:
- BP
- Spline Count:
- 16

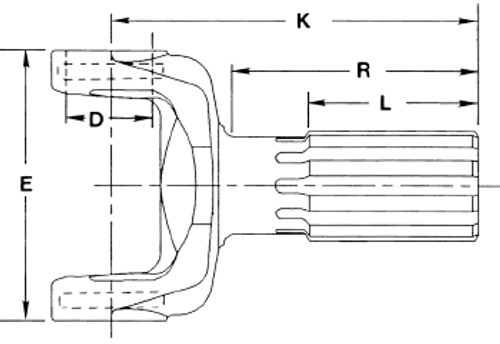

- Centerline To End Of Splne (K):
- 13.156
- Major Spline Diameter:
- 2.500
- Spline Length (L) In:
- 4.000
- Spline Hole Minor Diameter:
- 2.125
- Spline Width:
- 0.234
- End/Spline To Point/Rad. (R):
- 9.460
- Angle #1:
- 45.0
