Spicer 6-82-1131-2 1710 Series Yoke Shaft
68211312
PLEASE USE THE DANA ONILNE CENTER YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: 68211312, Daimler: SP 6 82 1131 2, Daimler: SP 6 82 1131 2HP, Dana Commercial Vehicle Service Parts: 2104-68211312, Freightliner Trucks: 68211312, Freightliner Trucks: SP 6 82 1131 2, Freightliner Trucks: SP 6 82 1131 2HP, International Harvester (IHC): 68211312, International Harvester (IHC): D68211312, International Harvester (IHC): E68211312, Mack: 2104-68211312, Navistar: 68211312, Navistar: D68211312, Navistar: DS68211312, Navistar: E68211312, Paccar Parts: 6-82-1131-2, UAP: 6-82-1131-2, Volvo Cars: 2104-68211312, Volvo Cars: SP 68211312, P6-82-1131-2
- UPC:
- 00023913218911
- Series:
- 1710
- Prop 65:
- No
- Style:
- BP

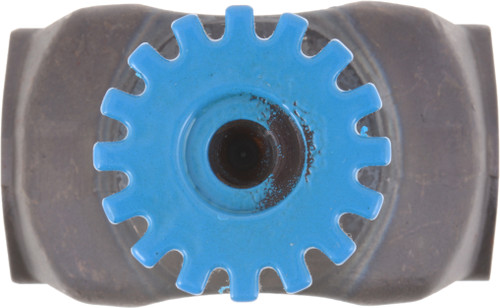

- Spline Count:
- 16

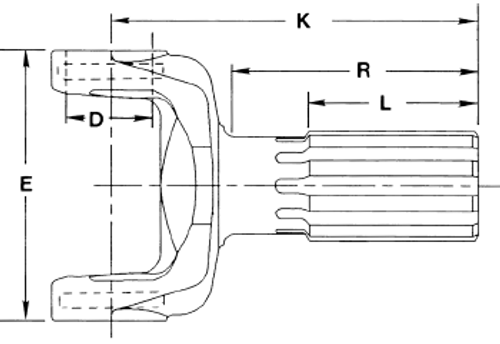

- Centerline To End Of Splne (K):
- 8.531
- Major Spline Diameter:
- 2.500
- Spline Length (L) In:
- 3.500
- Spline Hole Minor Diameter:
- 2.125
- Spline Width:
- 0.234
- End/Spline To Point/Rad. (R):
- 5.781
- Angle #1:
- 22.0
