Spicer 6-4-9201-1X 1710 Series Half Round End Yoke
6492011X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: SP 6 4 9201 1X, Daimler: SP 6 4 9201 1XHP, Dana Commercial Vehicle Service Parts: 128874, Dana Commercial Vehicle Service Parts: 128877, Dana Commercial Vehicle Service Parts: 171MU51P72, Dana Commercial Vehicle Service Parts: 216471, Dana Commercial Vehicle Service Parts: 216472, Freightliner Trucks: SP 6 4 9201 1X, Freightliner Trucks: SP 6 4 9201 1XHP, International Harvester (IHC): 2502841C91, International Harvester (IHC): 6492011X, International Harvester (IHC): D6492011X, International Harvester (IHC): E6492011X, Mack: 171MU51P72, Mack: 2104-6492011X, Mack: 25158545, Navistar: 2502841C91, Navistar: 6492011X, Navistar: D6492011X, Navistar: DS6492011X, Navistar: E6492011X, Navistar: ETN0128874, Navistar: ETN0128877, Navistar: ETN0216472, Paccar Parts: 6-4-9201-1X, Peterbilt: 7HB264, Peterbilt: RH106242, Volvo Cars: 171MU51P72, Volvo Cars: 3933448, Volvo Cars: 393344B, Volvo Cars: 85121072, Volvo Cars: SP 6492011X
6492011X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: SP 6 4 9201 1X, Daimler: SP 6 4 9201 1XHP, Dana Commercial Vehicle Service Parts: 128874, Dana Commercial Vehicle Service Parts: 128877, Dana Commercial Vehicle Service Parts: 171MU51P72, Dana Commercial Vehicle Service Parts: 216471, Dana Commercial Vehicle Service Parts: 216472, Freightliner Trucks: SP 6 4 9201 1X, Freightliner Trucks: SP 6 4 9201 1XHP, International Harvester (IHC): 2502841C91, International Harvester (IHC): 6492011X, International Harvester (IHC): D6492011X, International Harvester (IHC): E6492011X, Mack: 171MU51P72, Mack: 2104-6492011X, Mack: 25158545, Navistar: 2502841C91, Navistar: 6492011X, Navistar: D6492011X, Navistar: DS6492011X, Navistar: E6492011X, Navistar: ETN0128874, Navistar: ETN0128877, Navistar: ETN0216472, Paccar Parts: 6-4-9201-1X, Peterbilt: 7HB264, Peterbilt: RH106242, Volvo Cars: 171MU51P72, Volvo Cars: 3933448, Volvo Cars: 393344B, Volvo Cars: 85121072, Volvo Cars: SP 6492011X
- UPC:
- 00023913220846
- Series:
- 1710
- Material:
- Steel
- Prop 65:
- Yes
- California Proposition 65:
- WARNING: Cancer - www.p65warnings.ca.gov
- Type:
- Splined Hole
- Spline Count:
- 46
- Involute Spline:
- Y

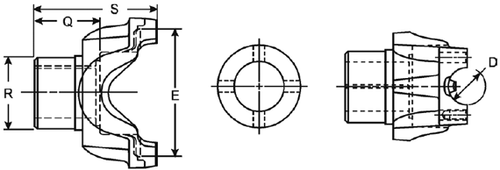

- Hub Diameter R:
- 3.375
- Length Thru Hole Q:
- 3.188
- Yoke Style:
- HR
- C/L To End Hub S:
- 6.000
- C-Bore Depth:
- 0.580
- Assembly:
- Y
- Includes Slinger/Plug:
- Y
- Yoke Bearing Dimension (In) D:
- 1.938
- Major Diameter:
- 2.390
- Outside Yoke Dimension (In) E:
- 6.190
