Spicer 6-4-8321X 1710 Series Full Round End Yoke
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
6-4-8321X

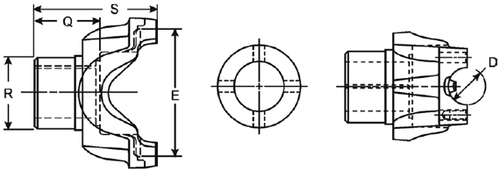

JOINT SERIES:
D DIMENSION:
E DIMENSION:
YOKE STYLE:
Q LENGTH THRU HOLE:
R HUB DIAMETER:
S CENTERLINE TO END:
SPLINE COUNT:10
SPLINE OD:2.5
NOTES:
Cross References:
Navistar: DS648321X, Paccar Parts: 6-4-8321X, UAP: 6-4-8321X, 644421, 648321X, 6-4-4421, P6-4-8321X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
6-4-8321X
JOINT SERIES:
D DIMENSION:
E DIMENSION:
YOKE STYLE:
Q LENGTH THRU HOLE:
R HUB DIAMETER:
S CENTERLINE TO END:
SPLINE COUNT:10
SPLINE OD:2.5
NOTES:
Cross References:
Navistar: DS648321X, Paccar Parts: 6-4-8321X, UAP: 6-4-8321X, 644421, 648321X, 6-4-4421, P6-4-8321X
- UPC:
- 00023913221690
- Series:
- 1710
- Material:
- Steel
- Prop 65:
- No
- Type:
- Splined Hole
- Spline Count:
- 10
- Involute Spline:
- N
- Hub Diameter R:
- 3.500
- Length Thru Hole Q:
- 2.406
- Yoke Style:
- BP
- C/L To End Hub S:
- 5.156
- Assembly:
- Y
- Includes Slinger/Plug:
- Y
- Yoke Bearing Dimension (In) D:
- 1.938
- Major Diameter:
- 2.500
- Outside Yoke Dimension (In) E:
- 6.094
