Spicer 3-4-343-1 1410 Series 1.25" Half Round Yoke 5/16" Keyway
343431
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: SP 3 4 343 1HP, Daimler: SP 3 4 3431, Euclid: E4027840, Freightliner Trucks: SP 3 4 343 1HP, Freightliner Trucks: SP 3 4 3431, International Harvester (IHC): 343431, International Harvester (IHC): D34341, International Harvester (IHC): E34341, International Harvester (IHC): E343431, Mack: 2104-34343, Mack: 2104-343431, Navistar: 343431, Navistar: D34341, Navistar: DS343431, Navistar: E34341, Navistar: E34343, Navistar: E343431, Paccar Parts: 3-4-343-1, Peterbilt: 17227FX, Peterbilt: 3325016, Volvo Cars: 2104-34343, Volvo Cars: SP 343431, P3-4-343-1
343431
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Daimler: SP 3 4 343 1HP, Daimler: SP 3 4 3431, Euclid: E4027840, Freightliner Trucks: SP 3 4 343 1HP, Freightliner Trucks: SP 3 4 3431, International Harvester (IHC): 343431, International Harvester (IHC): D34341, International Harvester (IHC): E34341, International Harvester (IHC): E343431, Mack: 2104-34343, Mack: 2104-343431, Navistar: 343431, Navistar: D34341, Navistar: DS343431, Navistar: E34341, Navistar: E34343, Navistar: E343431, Paccar Parts: 3-4-343-1, Peterbilt: 17227FX, Peterbilt: 3325016, Volvo Cars: 2104-34343, Volvo Cars: SP 343431, P3-4-343-1
- UPC:
- 00023913230197
- Series:
- 1410
- Material:
- Steel
- Prop 65:
- No
- Type:
- Straight Round Hole
- Involute Spline:
- N

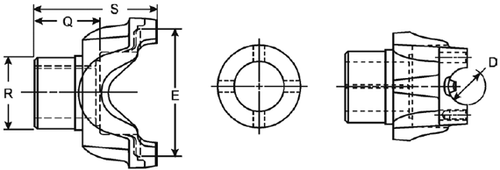

- Hub Diameter R:
- 2.250
- Length Thru Hole Q:
- 2.000
- Yoke Style:
- BS
- C/L To End Hub S:
- 3.688
- Joint Angle #1:
- 30
- Yoke Bearing Dimension (In) D:
- 1.188
- Keyway Location W:
- 12
- Set Screw Location W:
- 6
- Set Screw Hole Diameter (In):
- 0.375
- Outside Yoke Dimension (In) E:
- 4.188
- Hole Diameter (In) P:
- 1.250
- Sae Keyway Width (In) X:
- 0.312
- Hole Diameter - Max:
- 1.2505
- Hole Diameter - Min:
- 1.2495
- Keyway Width - Max:
- 0.3125
- Keyway Width - Min:
- 0.3115
