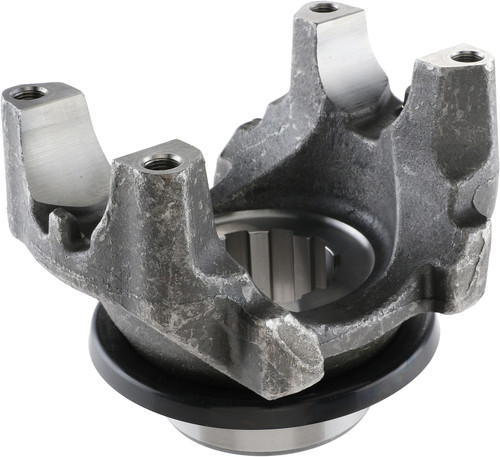

Spicer 170-4-1091-1 Spl170 Series Half Round Yoke
170410911
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Allison Transmission: 29536301, Allison Transmission: P259512, Daimler: SP 170 4 1091 1, Freightliner Trucks: SP 170 4 1091 1, General Motors: 29536301, General Motors: P259512, International Harvester (IHC): 170410911, International Harvester (IHC): 3525304C1, International Harvester (IHC): E170410911, McNeilus: 3323558, Navistar: 170410911, Navistar: 3525304C1, Navistar: DS170410911, Navistar: E170410911, Paccar Parts: 170-4-1091-1, Peterbilt: 3323558, UAP: 170-4-1091-1, Volvo Cars: SP 170410911
170410911
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
Cross References:
Allison Transmission: 29536301, Allison Transmission: P259512, Daimler: SP 170 4 1091 1, Freightliner Trucks: SP 170 4 1091 1, General Motors: 29536301, General Motors: P259512, International Harvester (IHC): 170410911, International Harvester (IHC): 3525304C1, International Harvester (IHC): E170410911, McNeilus: 3323558, Navistar: 170410911, Navistar: 3525304C1, Navistar: DS170410911, Navistar: E170410911, Paccar Parts: 170-4-1091-1, Peterbilt: 3323558, UAP: 170-4-1091-1, Volvo Cars: SP 170410911
- UPC:
- 00023913247393
- Series:
- SPL170
- Material:
- Steel
- Prop 65:
- No
- Type:
- Splined Hole
- Spline Count:
- 55
- Involute Spline:
- I
- Hub Diameter R:
- 4.725
- Length Thru Hole Q:
- 2.047
- Yoke Style:
- HR
- C/L To End Hub S:
- 5.200
- C-Bore Depth:
- 0.150
- C-Bore Diameter:
- 2.856
- Joint Angle #1:
- 25
- Yoke Bearing Dimension (In) D:
- 2.166
- Major Diameter:
- 2.795
- Outside Yoke Dimension (In) E:
- 6.456
