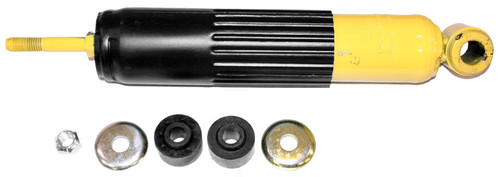

The Monroe® Magnum® Front Suspension Shock Absorber is engineered specifically for transit buses, delivering a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.

Built for the most demanding transit applications, the Magnum transit front shock delivers consistent large-bore performance with 10-stage valving tuned specifically to transit bus platforms.

• FOR HARDWORKING TRANSIT BUSES: Designed to handle the demands of high mileage and severe use transit buses.
• CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/4-in. reserve tube holds more fluid (when required).
• EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore allows finetuning for better heat dissipation and control.
• STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
• BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (when required).
• LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
• REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
• BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Compatible with front suspension on 2001-2002 Nova Bus Corporation RTS.

---

Cross References:
Batco: 1085311, Batco: 1087001, Novabus: 22024673, Peterbilt: 307281, Peterbilt: 307424, Sachs: 312724, Volvo GM Heavy Truck: 3919988, Navistar: 435327C91, KYB: 441601, Navistar: 453527C91, Navistar: 453528C91, Navistar: 56101Z1030, Neway: 57374417, Gabriel: 680191, Paccar Parts: 680241, Peterbilt: 68024140A, Motor Coach Industries: 680350, Gabriel: 68035240T, Gabriel: 690102, Gabriel: 690104, Mack: 700404, Mack: 700404MT, Monroe Shocks & Struts: 701404, Gabriel: 728615, Monroe Shocks & Struts: 74417, NAPA Shocks: 74417, Gold Shock Absorber: 8180255, Gabriel: 85311, Koni: 901974, Novabus: 902443, Flxible Transit Bus: 97999902633, Navistar: AMS700404, Euclid: E85311, FCS: F346599, Novabus: G1011823, Novabus: G1201338, Bulldog HD: HD11160033, Nuturn/leland: L76118, Volvo GM Heavy Truck: SA5311, Navistar: 74417, Peterbilt: 0307281, Peterbilt: 0307424, Dayton Parts: 441853114417, 74417

---

UPC:

048598036285

Mfr Part Number:

74417

Country of origin (CO):

US

Color:

Black

Compressed Length:

15.3906 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

23.9688 (unece.unit.INH)

Finish:

Painted

Gas Charged:

No

Grade Type:

Premium

Hydraulic Lockout:

Yes

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

L4

Lower Mount Type:

Loop (Eyelet) Bushing

Mounting Hardware Included:

Yes

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Base of Stem

Travel Length:

8.578 (unece.unit.INH)

Upper Mount Code:

S6

Adjustable Damping4:

No

Lower Mount Code48:

L4

Upper Mount Code74:

S6

Lower Mount Type49:

Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL

Parts Pack(s):

P01482

Shaft Diameter61:

18 MM

Upper Mount Type75:

Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch

Body Diameter:

2.75 (unece.unit.INH)
