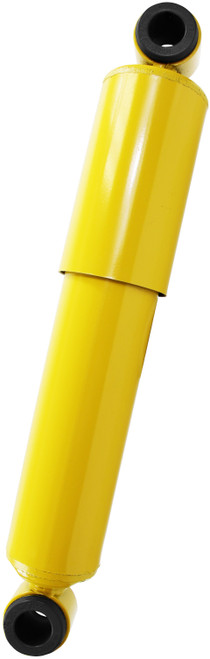

The Monroe® Magnum® Rear and Front Suspension Shock Absorber for transit buses delivers a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
A multi-position transit bus Magnum shock covering International F5070 series, Thomas School Bus, and Prevost coach platforms, backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.
- For Hardworking Transit Buses: Designed to handle the demands of high mileage and severe use transit buses.
- Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/4-in. reserve tube holds more fluid (when required).
- Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore allows valve fine-tuning by allowing more hydraulic fluid to dissipate heat for better control.
- Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
- Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (when required).
- Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
- Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
- Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.
Common Fits: International F5070 and F5070-SF (1981-2001, front); Thomas School Bus (1988-2006, rear); Prevost X3 Coach (2007-2019, rear).
Cross References:
International Harvester (IHC): 426744R91, Prevost: 010100905, Oshkosh: 12105F1, Oshkosh: 12405F1, Prevost: 12T113, Motor Coach Industries: 12TA01013, General Motors: 22012091, Crane Carrier: 277A8, Sachs: 315392, Sachs: 316841, Crown Coach: 3188729, Navistar: 426744R91, Navistar: 426744R92, Navistar: 453576C91, Navistar: 477132C1, Navistar: 477132C91, ACDelco: 5074, Sachs: 510005, Brockway: 515231, General Motors: 530596, General Motors: 5552452, Neway: 57374025, Prevost: 630001, ACF Brill: 659129, Oshkosh: 665040, Crane Carrier: 680091, Orion: 680091, Gabriel: 68009140Y, Paccar Parts: 680237, Gabriel: 68023740Y, Mack: 700102, Mack: 700102MT, Monroe Shocks & Struts: 70018, Built Rite: 70039, Bus & Car Co: 70039, Continental Trailways Bus: 70039, Country Coach: 70039, Eagle Transit Bus: 70039, Monroe Shocks & Struts: 701102, Gabriel: 728607, Monroe Shocks & Struts: 74007, Monroe Shocks & Struts: 74025, NAPA Shocks: 74025, Monroe Shocks & Struts: 74039, Gold Shock Absorber: 8190107, Gabriel: 85303, Gabriel: 85308, Gabriel: 89422, Ottawa: 9007342, Koni: 901897, Koni: 90229, Navistar: AMS700102, Euclid: E85303, FCS: F347316, FCS: F347340, Bulldog HD: HD11160043, Nuturn/leland: L76025, Nuturn/leland: L78025, Volvo GM Heavy Truck: SA5303, Prevost: 10100905, Orion: 68009140Y, Dayton Parts: 44185303, GMC: 5552452, GMC: 22012091, GMC: 530596, 89422, 74025
- UPC:
- 048598036056
- Mfr Part Number:
- 74025
- Country of origin (CO):
- US
- Color:
- Black
- Compressed Length:
- 15.62 (unece.unit.INH)
- Cylinder Color:
- Black
- Cylinder Finish:
- Painted
- Dust Shield Included:
- Yes
- Dust Shield Material:
- Metal
- Extended Length:
- 24.52 (unece.unit.INH)
- Finish:
- Painted
- Gas Charged:
- No
- Grade Type:
- Premium
- Hydraulic Lockout:
- Yes
- Includes Bump Stop:
- No
- Internal Rebound Bumper:
- No
- Lower Mount Code:
- L4
- Lower Mount Type:
- Loop (Eyelet) Bushing
- Mounting Hardware Included:
- No
- Shock Absorber Body End Measuring Point:
- Center of Loop
- Shock Absorber Rod End Measuring Point:
- Center of Loop
- Travel Length:
- 8.9 (unece.unit.INH)
- Upper Mount Code:
- L4
- Adjustable Damping4:
- No
- Lower Mount Code48:
- L4
- Upper Mount Code74:
- L4
- Lower Mount Type49:
- Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
- Shaft Diameter61:
- 18 MM
- Upper Mount Type75:
- Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
