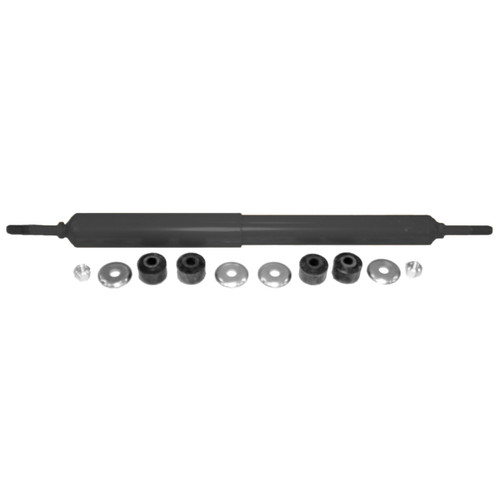

The Monroe® Magnum® Rear Suspension Shock Absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replacing worn-out units with Magnum® shocks helps reduce excessive vibration.

Purpose-built for class 3-6 commercial trucks, the Magnum delivers reliable rear suspension performance for Blue Bird Commercial Bus and Mack CH applications with 10-stage valving and durable construction.

• FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 3-6 trucks and buses.
• CONSISTENT RIDE: All-weather fluid handles extreme temperatures; 2-in. or 2-1/4-in. reserve tube holds more fluid (when required).
• EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/8-in. bore for consistent, smooth ride (most applications).
• STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
• BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
• REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
• IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
• BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Compatible with rear suspension on 1992-2007 Blue Bird Commercial Bus and 1989-2005 Mack CH.

---

Cross References:
Mack: 14QK410M, Watson & Chalin: 11604, Batco: 1083201, Batco: 1083202, Cascade Trailer: 1201, General Trailer: 1201, Peerless: 1201, Monroe Shocks & Struts: 12608, Blue Bird: 1316546, Reyco Granning: 1682401, Reyco Granning: 1816501, Dexter: 1816501, Great Dane Trailers: 1816501, Reyco Granning: 1982401, Mack: 25625234, Sachs: 290465, Built Rite: 31806100, KYB: 345616, Volvo GM Heavy Truck: 3919917, Sachs: 410021, Trailmobile: 434241, Trailmobile: 436137, Trailmobile: 438015, Sachs: 510001, Neway: 57306898, Neway: 57366898, Gabriel: 59031, Mack: 600114MT, Monroe Shocks & Struts: 601114, Monroe Shocks & Struts: 6045, Gabriel: 638312, General Trailer: 650147, Monroe Shocks & Struts: 660114, Mack: 660114MT, Monroe Shocks & Struts: 660244, Monroe Shocks & Struts: 661114, Gabriel: 665465, NAPA Shocks: 66884, Monroe Shocks & Struts: 66898, Monroe Shocks & Struts: 6898, Binkley: 6898, Peerless: 7261, Gabriel: 727601, Gabriel: 728618, Gold Shock Absorber: 8150240, Gold Shock Absorber: 8160091, Gabriel: 83125, Gabriel: 83201, Neway: 90044012, Trailmobile: 90044625, Neway: 90044679, Neway: 90044680, Neway: 90044687, Gold Shock Absorber: 9160527, Turner: A2471, Hendrickson: A2471, Navistar: AMS600114, Navistar: AMS660114, Neway: AR1008, Ridewell Corp: AS546B, Motorcraft: CAX898, General Trailer: CC512, General Trailer: CC514, Euclid: E83201, Euclid: E85006, Bulldog HD: HD12140532, Nuturn/leland: L57644, Iveco: M0044012, Euclid: M83125, Volvo GM Heavy Truck: RCSA3125, Volvo GM Heavy Truck: SA3125, Binkley: XBSPN05336, Neway: 601114, Dayton Parts: 44183125, 83125, A83125, M83125, 66884

---

UPC:

048598075444

Mfr Part Number:

66884

Country of origin (CO):

US

Color:

Black

Compressed Length:

17.188 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

27.953 (unece.unit.INH)

Finish:

Painted

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

Yes

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

LS54

Lower Mount Type:

Loop (Eyelet) Bushing and Sleeve

Mounting Hardware Included:

No

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Center of Cross Pin

Travel Length:

10.765 (unece.unit.INH)

Upper Mount Code:

LS54

Adjustable Damping4:

No

Lower Mount Code48:

LS54

Upper Mount Code74:

LS54

Lower Mount Type49:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL

Shaft Diameter61:

16 MM

Upper Mount Type75:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
