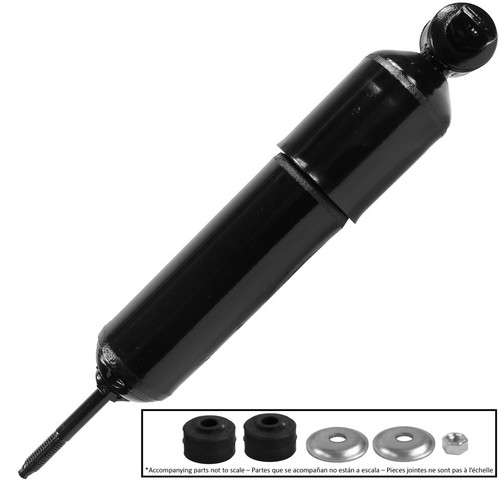

The Monroe® Magnum® Cab Suspension Shock Absorber is a gas-charged unit designed for heavy-duty cab suspensions, isolating the cab from the frame for a smoother, more comfortable ride. Velocity-sensitive valving delivers a new standard in driver comfort (most applications).

A direct-fit cab replacement for Mack CH and CL series trucks, the Magnum Cab shock reduces driver fatigue and NVH, backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

• For Hardworking Commercial Vehicles: Designed for high mileage and severe use vehicles with cab suspensions.
• Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-in. reserve tube holds more fluid (when required).
• Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/8-in. bore provides efficient and consistent control (most applications).
• Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
• Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
• Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
• Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
• Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Mack CH (1989-2005), Mack CL (1991-2007). All fitments are cab position.

---

Cross References:
Mack: 12110008, Link: 12110008, Peterbilt: 12110008, Mack: 14QK391AM, Mack: 14QK391AM2, Mack: 14QK391BM, Mack: 14QK391BM2, Mack: 25624698, Mack: 25624837, Sachs: 316828, Sachs: 316829, NAPA Shocks: 66189, Gold Shock Absorber: 8160910, Gabriel: 83041, Volvo GM Heavy Truck: 83176192, Automann: A83041, FCS: F344348, Flagg Suspension Parts: F66189, Bulldog HD: HD12140496, Meritor: M83041, Volvo GM Heavy Truck: RCSA3041, Volvo GM Heavy Truck: SA3041, Haldex: SA66189, Gabriel: F344348, Dayton Parts: 44183041, 66189

---

UPC:

048598076458

Mfr Part Number:

66189

Country of origin (CO):

US

Color:

Black

Compressed Length:

8.75 (unece.unit.INH)

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

10.875 (unece.unit.INH)

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

No

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

S4

Lower Mount Type:

Stem

Mounting Hardware Included:

Yes

Shock Absorber Body End Measuring Point:

Base of Stem

Shock Absorber Rod End Measuring Point:

Center of Cross Pin

Travel Length:

2.125 (unece.unit.INH)

Upper Mount Code:

XP8

Lower Mount Code48:

S4

Upper Mount Code74:

XP8

Lower Mount Type49:

Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch

Parts Pack(s):

P01134

Upper Mount Type75:

Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 3" Pin Length (Hole Center to Center)
