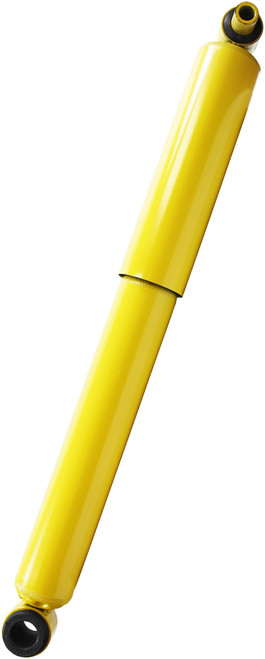

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.
Built for severe use class 6-8 trucks, the Magnum front shock delivers consistent performance for Blue Bird TC2000 school buses and Pierce Mfg. Quantum fire apparatus platforms.
- FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 6-8 trucks and buses.
- CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
- EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore for efficient damping (most applications).
- STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
- BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
- LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
- REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
- IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
- BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.
Common Fits: Compatible with front suspension on 1989-2004 Blue Bird TC2000 and 2005-2014 Pierce Mfg. Inc. Quantum.
Cross References:
Fruehauf: UCF83391, International Harvester (IHC): 507202C1, Ridewell Corp: 1253069B000, Ridewell Corp: 1273069B000, Blue Bird: 1668722, Blue Bird: 1722214, Reyco Granning: 2515701, Sachs: 311635, Sachs: 315613, Sachs: 316308, Pierce Mfg Inc: 403135, Pierce Mfg Inc: 406967, Sachs: 410068, Sachs: 471700000436, Sachs: 471700000459, Gold Shock Absorber: 5001267, Navistar: 507202C1, Sachs: 510019, Neway: 57365421, Carpenter Bus: 630001, Mack: 650421, Mack: 650421MT, NAPA Shocks: 65421, Gabriel: 665784, Fruehauf: 680298, Neway: 680645, Monroe Shocks & Struts: 70626, Monroe Shocks & Struts: 70628, Monroe Shocks & Struts: 70630, Monroe Shocks & Struts: 70652, Volvo GM Heavy Truck: 83176233, Gabriel: 85030, Gabriel: 85321, Gabriel: 85916, Koni: 881704, Gabriel: 89440, Neway: 90044466, Neway: 90045096, Neway: 90045175, Neway: 90045432, Neway: 90045466, Neway: 90045532, Gold Shock Absorber: 9180130, Automann: A85916, Navistar: AMS650421, FCS: F347336, Ford: F6HT18045GB, Ford: F6HT18045GC, Bulldog HD: HD12150091, Meritor: M85916, Neway: OE10220, Monroe Shocks & Struts: OE10220, Volvo GM Heavy Truck: SA5321, Volvo GM Heavy Truck: SA5916, Haldex: SA65421, Fruehauf: UCE8339001, Fruehauf: UCE8339901, Fruehauf: UCF8339001, Fruehauf: UCF8339002, Gabriel: 311635, Dayton Parts: 44185321, 65421
- UPC:
- 048598173218
- Mfr Part Number:
- 65421
- Country of origin (CO):
- CN
- Color:
- Black
- Compressed Length:
- 393.1 (unece.unit.MMT)
- Cylinder Color:
- Black
- Cylinder Finish:
- Painted
- Dust Shield Included:
- Yes
- Dust Shield Material:
- Metal
- Extended Length:
- 629.3 (unece.unit.MMT)
- Gas Charged:
- Yes
- Grade Type:
- Premium
- Hydraulic Lockout:
- Yes
- Includes Bump Stop:
- No
- Internal Rebound Bumper:
- No
- Lower Mount Code:
- LS54
- Lower Mount Type:
- Loop (Eyelet) Bushing and Sleeve
- Mounting Hardware Included:
- No
- Shock Absorber Body End Measuring Point:
- Center of Loop
- Shock Absorber Rod End Measuring Point:
- Center of Loop
- Travel Length:
- 9.30 (unece.unit.INH)
- Upper Mount Code:
- LS54
- Lower Mount Code48:
- LS54
- Upper Mount Code74:
- LS54
- Lower Mount Type49:
- Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
- Upper Mount Type75:
- Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
