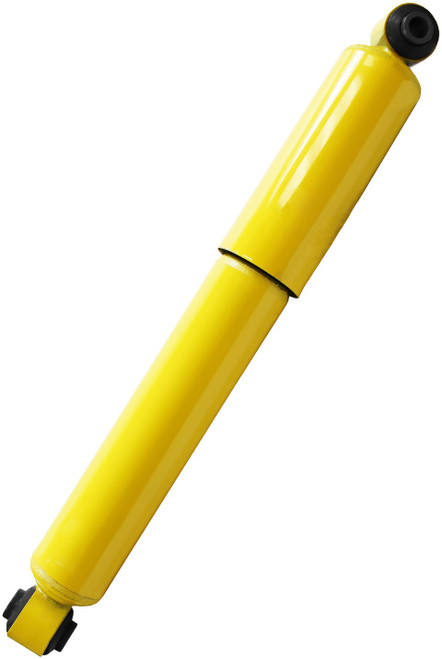

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.
A front-end replacement for a broad range of International WorkStar, HV-Series, and medium-duty trucks, the Magnum is backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.
- For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
- Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
- Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
- Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
- Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
- Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
- Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
- Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
- Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.
Common Fits: International 7300, 7400, 7500 (2002-2020), International 7600 and WorkStar 7600 (2003-2019), International WorkStar 7300 and 7400 (2015-2016), International HV507, HV513, HV607, HV613 (2019-2020), International CXT (2005-2008), International COF5870 Paystar (1985-1988), International HV (2020). All fitments are front position.
Cross References:
International Harvester (IHC): 3541456C1, International Harvester (IHC): 3576464C1, Sachs: 317965, Navistar: 3533357C2, Navistar: 3541456C1, Navistar: 3541456C2, Navistar: 3576464C1, Navistar: 3576464C2, Navistar: 3596878C2, Navistar: 3606770C1, Navistar: 3606770C2, Navistar: 3816234C1, Gold Shock Absorber: 5000857, NAPA Shocks: 65145, Gabriel: 85648, Gabriel: 85929, Gabriel: 85957, PRT HD: 925341, PRT HD: 925351, FCS: F347355, Bulldog HD: HD12150161, Navistar: 85957, Fleetrite: AMS65145, 65145
- UPC:
- 048598170453
- Mfr Part Number:
- 65145
- Country of origin (CO):
- CN
- Color:
- Black
- Compressed Length:
- 13.2188 (unece.unit.INH)
- Cylinder Color:
- Black
- Cylinder Finish:
- Painted
- Dust Shield Included:
- Yes
- Dust Shield Material:
- Metal
- Extended Length:
- 20.2813 (unece.unit.INH)
- Finish:
- Painted
- Gas Charged:
- Yes
- Grade Type:
- Premium
- Hydraulic Lockout:
- No
- Includes Bump Stop:
- No
- Internal Rebound Bumper:
- No
- Lower Mount Code:
- LS53
- Lower Mount Type:
- Loop (Eyelet) Bushing and Sleeve
- Mounting Hardware Included:
- No
- Shock Absorber Body End Measuring Point:
- Center of Loop
- Shock Absorber Rod End Measuring Point:
- Center of Loop
- Travel Length:
- 7.062 (unece.unit.INH)
- Upper Mount Code:
- LS53
- Adjustable Damping4:
- No
- Foam Cell Design38:
- No
- Lower Mount Code48:
- LS53
- Upper Mount Code74:
- LS53
- Lower Mount Type49:
- Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL
- Shaft Diameter61:
- 18 MM
- Upper Mount Type75:
- Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL
