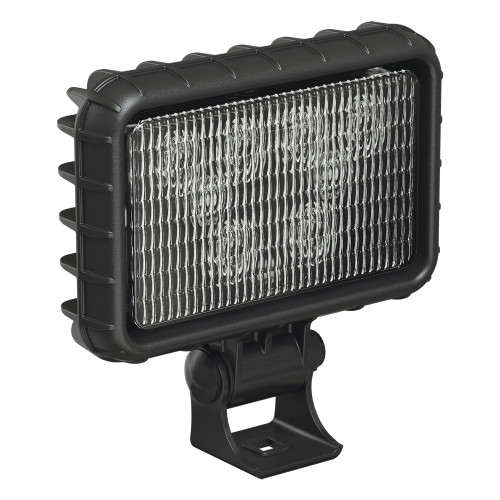

1300001 - 12-24V LED Work Light with Flood Beam Pattern
LED Work Lights - Model 840 XD
4" x 4" LED Work Lights
Applications
LED Work Lights - Model 840 XD
4" x 4" LED Work Lights
Overview:
The Model 840 XD is the very same light that was featured in our XD Series torture test video! It is available in DC configurations and comes in your choice of beam patterns. It features a tough polycarbonate lens that is sealed to IP69K.
Forklift Safety Lighting Package:
J.W. Speaker offers a safety lighting package, designed to help both your operators as well as your working pedestrians on the floor, adding safety precautions and visibility to your warehouse!
Features:
- Universal mount
- Reverse voltage protected
Applications
- Agriculture
- Automotive
- Construction
- Industrial
- Material Handling
- Mining
- Off-Road 4x4
- Railroad
- Specialty Vehicles
- Truck & Bus
- UPC:
- 799475634031
- Part Number:
- 1300001
- Model:
- 840 XD
- Shape:
- Square
- Outer Lens Material:
- Polycarbonate
- Outer Lens Color:
- Clear
- Housing Material:
- Polycarbonate
- Housing Color:
- Black
- Min Operating Temp (F):
- -40
- Max Operating Temp (F):
- 65
- Connector or Wiring:
- Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
- Mating Connector:
- 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
- Raw Lumen Output:
- 1080
- Effective Lumen Output:
- 780
- Input Voltage:
- 12-24
- Operating Voltage:
- 10-30
- Current Draw 1:
- 1.25
- NMFC:
- 17870
- NMFC Sub Code:
- 8
- HS Tariff:
- 8512.2
- Country of Origin:
- US
- Wire Color 1:
- Red
- Wire Function 1:
- Positive
- Wire Color 2:
- Black
- Wire Function 2:
- Negative
- Technology:
- L
- Product Height (mm):
- 113.28
- Product Width (mm):
- 154.18
- Product Depth (mm):
- 54.1
- Product Weight (lbs):
- 0.86
