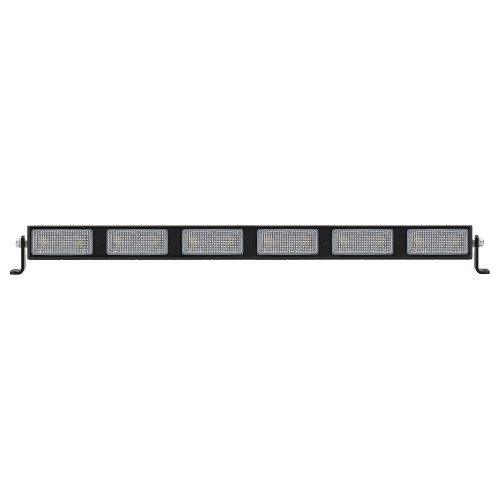

0546271 - 12/24V LED 6-Mod Light bar 40" with Flood Beam Pattern
LED Light Bars - Model 9049-6M
40" LED Light Bars
Applications
LED Light Bars - Model 9049-6M
40" LED Light Bars
The largest of our light bar options, the Model 9049-6M features six Model 6048 auxiliary lights. This light bar produces an impressive 3,960 Effective Lumens of bright, white light in either a flood or driving beam pattern.
- Die-cast aluminum housing for maximum protection
- Universal mount for pain-free installation
- Multiple voltage options available
- Also available in a 2-module or 4-module configuration
Applications
- Construction
- Industrial
- Truck & Bus
- UPC:
- 610074514206
- Part Number:
- 0546271
- Model:
- 9049-6M
- Shape:
- Rectangular
- Outer Lens Material:
- Polycarbonate
- Outer Lens Color:
- Clear
- Housing Material:
- Die-Cast Aluminum
- Housing Color:
- Black
- Min Operating Temp (F):
- -40
- Max Operating Temp (F):
- 65
- Connector or Wiring:
- 10" Bare Leads
- Raw Lumen Output:
- 6600
- Effective Lumen Output:
- 3960
- Input Voltage:
- 12-24
- Current Draw 1:
- 7.2
- NMFC:
- 17870
- NMFC Sub Code:
- 8
- HS Tariff:
- 8512.90.50.00
- Country of Origin:
- US
- Wire Color 1:
- Red
- Wire Function 1:
- Positive
- Wire Color 2:
- Black
- Wire Function 2:
- Negative
- Technology:
- L
- Product Height (mm):
- 1043.18
- Product Width (mm):
- 102.87
- Product Depth (mm):
- 73.15
- Product Weight (lbs):
- 10.67
