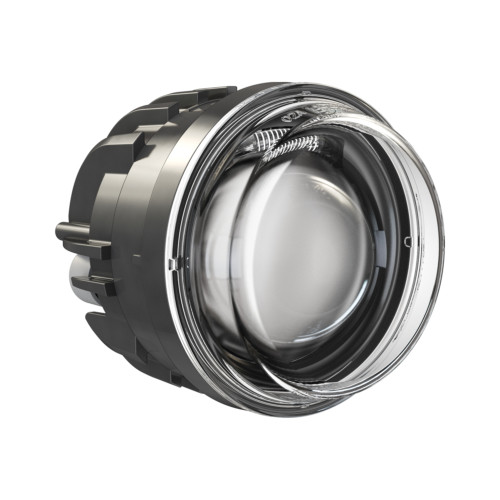

0549881 - 12-24V DOT/ECE LED RHT High & Low Beam Headlight with Front Position
LED Headlight Replacement - Model 6130 Evolution
4.75" Round LED Headlight
Applications
LED Headlight Replacement - Model 6130 Evolution
4.75" Round LED Headlight
The Model 6130 Evolution offers a headlight upgrade for 4.75? (PAR38) sealed beam headlights. The design incorporates advanced LED technology eliminating the hassle of an external driver and features a new, lower profile for an easier installation. The Model 6130 Evolution LED headlight uses high quality LEDs and engineered optics to produce maximum visibility for low beam, high beam and high/low beam options.
- Lower profile for universal mount fitting a variety of applications.
- Advanced LED technology eliminates the hassle of an external driver.
Applications
- Agriculture
- Construction
- Industrial
- Material Handling
- Mining
- Motorcycle
- Off-Road 4x4
- Powersports
- Specialty Vehicles
- Truck & Bus
- UPC:
- 799475636523
- Part Number:
- 0549881
- Model:
- 6130 Evolution
- Shape:
- Round
- Outer Lens Material:
- Polycarbonate
- Outer Lens Color:
- Clear
- Housing Material:
- Aluminum
- Housing Color:
- Black
- Connector or Wiring:
- 12" Flying Leads
- Mating Connector:
- n/a
- Raw Lumen Output:
- 2,230 (High Beam) | 1,330 (Low Beam)
- Effective Lumen Output:
- 840 (High Beam) | 440 (Low Beam)
- Input Voltage:
- 12-24
- Operating Voltage:
- 10-30
- Current Draw 1:
- 3
- NMFC:
- 17870
- NMFC Sub Code:
- 8
- HS Tariff:
- 8512.20.20.00
- Country of Origin:
- US
- Wire Color 1:
- Black
- Wire Function 1:
- Ground
- Wire Color 2:
- Yellow
- Wire Function 2:
- Low Beam
- Wire Color 3:
- White
- Wire Function 3:
- High Beam
- Wire Color 4:
- Red
- Wire Function 4:
- Front Position
- Technology:
- L
- Product Height (mm):
- 120.4
- Product Width (mm):
- 120.4
- Product Depth (mm):
- 81.53
- Product Weight (lbs):
- 1.55
