Cross References:
25920270288
- UPC:
- 678146053855
- Part Number:
- 259-202702-8-8
- Hex size 1 IN:
- 0.875
- Hex size 1 MM:
- 22.200
- Product material:
- 316 Stainless steel
- Thread size 1:
- 3/4-16 UNF
- End type 2:
- Male 37 degree

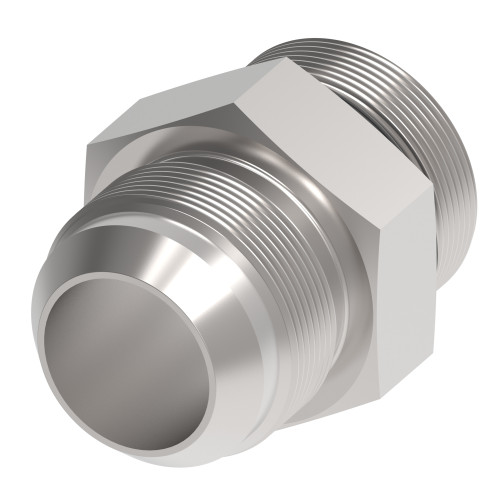

- Item type:
- Adapter-straight
- Thread sealant:
- No
- Finish plating:
- Passivate
- Tube outside diameter 1 IN:
- 0.500
- Tube outside diameter 1 MM:
- 12.7
- Tube outside diameter 2 IN:
- 0.500
- Tube outside diameter 2 MM:
- 12.7
- Working temp max C:
- 204
- Working temp max F:
- 400
- Working temp min C:
- -54
- Working temp min F:
- -65
- Thread size 27:
- 3/4-16 UNF
- Working pressure bar:
- 276
- Working pressure psi:
- 4000
