Cross References:
16Z-L76-BG, 16ZL76BG, 16Z-L76, 16ZL76
- UPC:
- 678146126054
- Part Number:
- 1AA16FRA16
- Series:
- 1A/Z Series

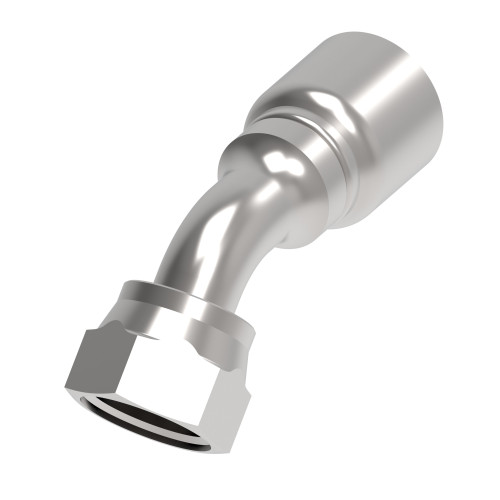

- Angle shape:
- 45 Degree
- Compatible hose ID IN:
- 1.000
- Compatible hose ID MM:
- 25.400
- Construction Style:
- Crimp
- End size 1:
- -16
- End type 1:
- Female ORFS swivel
- Hose cut off factor IN:
- 2.877
- Hose cut off factor MM:
- 73.100
- Hose size:
- -16
- Inside diameter IN:
- 0.810
- Inside diameter MM:
- 20.600
- Product material:
- Carbon steel
- A dimension IN:
- 4.390
- A dimension MM:
- 111.600
- Thread size 1:
- 1 7/16-12 UN
- End connection torque:
- 92-100 lb-ft(125-136 Nm)
- Product length in:
- 5.630
- Finish plating:
- Dura-Kote
- Product height in:
- 3.310
- Product height mm:
- 84.074
- Product length mm:
- 143.002
- Product width in:
- 1.940
- Product width mm:
- 49.276
- Drop dimension IN:
- 0.940
- Drop dimension MM:
- 23.90
