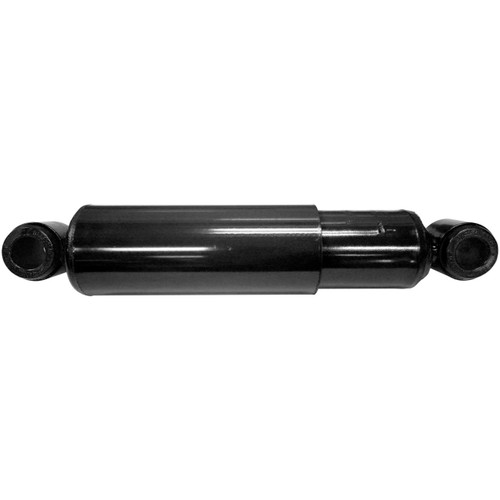

The Monroe® Magnum® Front and Rear Suspension Shock Absorber for transit buses delivers a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.

A multi-position transit bus Magnum shock covering Peterbilt, Blue Bird, and Gillig bus platforms across front and rear applications, backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

• For Hardworking Transit Buses: Designed to handle the demands of high mileage and severe use transit buses.
• Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/4-in. reserve tube holds more fluid (when required).
• Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore allows valve fine-tuning by allowing more hydraulic fluid to dissipate heat for better control.
• Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
• Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (when required).
• Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
• Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
• Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Peterbilt 349 (1984-1987, front), Peterbilt 353 (1981-1988, front), Peterbilt 359 (1981-1988, front), Peterbilt 362 (1981-2006, front); Blue Bird All American FE (1989-2016, front), Blue Bird All American RE (1989-2016, rear); Gillig School Bus (1989-1993, front and rear).

---

Cross References:
Peterbilt: 0200376, Peterbilt: 0200495, Peterbilt: 0202736, Peterbilt: 200376, Peterbilt: 200495, Peterbilt: 200496, Peterbilt: 202736, Crane Carrier: 277A13, Sachs: 317941, DINA: 393903396, Sachs: 410024, Gold Shock Absorber: 5001359, ACDelco: 5072, Sachs: 510002, Freightliner: 53522840Y, General Motors: 5544060, General Motors: 5544581, General Motors: 5552454, Mack: 5554184, General Motors: 5554814, Neway: 57374028, AM General: 5979484, Blue Bird: 614966, Thomas Built Buses: 614966, Freightliner: 680008, Freightliner: 68000940Y, Peterbilt: 680026, Gabriel: 68002640Y, Paccar Parts: 680240, Peterbilt: 68024040A, Gabriel: 68024040Y, Gabriel: 680249, Gabriel: 690076, Monroe Shocks & Struts: 700103, Mack: 700103MT, Monroe Shocks & Struts: 70034, Gillig: 70034, Volvo GM Heavy Truck: 70042, Mack: 70042, Freightliner: 70042, Monroe Shocks & Struts: 701103, Gabriel: 728606, Monroe Shocks & Struts: 74005, Monroe Shocks & Struts: 74028, NAPA Shocks: 74028, Gabriel: 85302, Gabriel: 89420, Koni: 901896, Navistar: AMS700103, Euclid: E85302, FCS: F347250, FCS: F347314, Bulldog HD: HD11160044, KYB: KG6007, Nuturn/leland: L76026, Euclid: M85302, Euclid: M89420, KYB: 345602, KYB: 345604, KYB: 6460006, KYB: KG6006, FCS: F347224, FCS: F347232, Freightliner: 0200376, Peterbilt: 0200496, Dayton Parts: 44185302, GMC: 5544581, GMC: 5544060, GMC: 5552454, GMC: 5554814, 74028

---

UPC:

048598036063

Mfr Part Number:

74028

Country of origin (CO):

US

Color:

Black

Compressed Length:

14.72 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Plastic

Extended Length:

22.74 (unece.unit.INH)

Gas Charged:

No

Grade Type:

Premium

Hydraulic Lockout:

No

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

L4

Lower Mount Type:

Loop (Eyelet) Bushing

Mounting Hardware Included:

No

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Center of Loop

Travel Length:

8.02 (unece.unit.INH)

Upper Mount Code:

L4

Lower Mount Code48:

L4

Upper Mount Code74:

L4

Lower Mount Type49:

Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL

Upper Mount Type75:

Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
