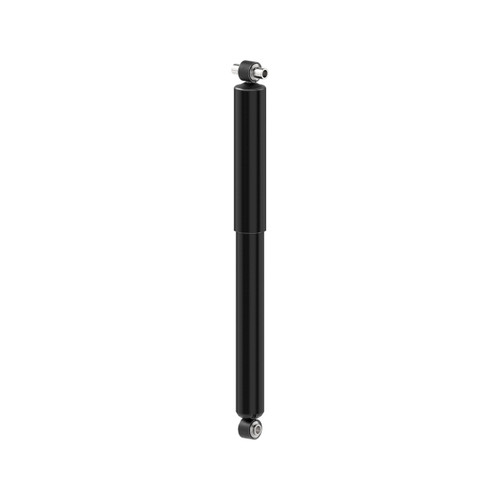

The Monroe® Magnum® Rear Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

A comprehensive rear Magnum shock covering Kenworth and Peterbilt heavy-duty trucks across a wide range of models and years, backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

• For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
• Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
• Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
• Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
• Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
• Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
• Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Kenworth W900 (1982-2021), Kenworth T800 (2001-2021), Kenworth T680 (2013-2024), Kenworth T880 (2014-2024), Kenworth T660 (2008-2019), Kenworth T700 (2011-2016), Kenworth T2000 (1997-2011), Kenworth T400 (2012-2021), Kenworth C500 (1981-2016), Kenworth T600A (1986-2008); Peterbilt 357, 365, 367, 375, 376, 377, 378, 379, 382, 384, 385, 386, 387, 388, 389, 567, 579, 587 (various years). All fitments are rear position.

---

Cross References:
Kenworth: C711002, Kenworth: c711016, Kenworth: C716015, Peterbilt: C711002, Peterbilt: c711016, Peterbilt: C716000, Peterbilt: C716015, Sachs: 315424, KYB: 341614, NAPA Shocks: 65495, Gabriel: 671794, Gabriel: 85067, Gabriel: 89451, FOX Commercial Truck Shocks: 98031008, Automann: A85067, Paccar Parts: C711002, Paccar Parts: C711016, Paccar Parts: C711016A, Paccar Parts: C711016PLUS, Paccar Parts: C716000, Paccar Parts: C716015, FCS: F347215, Bulldog HD: HD12150034, Meritor: M85067, Volvo GM Heavy Truck: RCSA5067, Road Choice: SA5000, Volvo GM Heavy Truck: SA5067, Road Choice: SA5067, Haldex: SA65495, KYB: 341620, KYB: 341621, KYB: 441600, FCS: F343368, FCS: F343375, FCS: F343376, FCS: F343378, FCS: F344342, FCS: F344343, FCS: F344353, FCS: F344355, FCS: F346598, FCS: F346599, FCS: F346633, FCS: F347303, FCS: F347306, Alliance Truck Parts: ABPN32G900020, Alliance Truck Parts: ABPN32O900020, Volvo GM Heavy Truck: 89451, Dayton Parts: 44185067, Volvo GM Heavy Truck: 44185067, Alliance Parts: ABPN32G900020, Alliance Parts: ABPN32O900020, 65495, RK4080, RK2020

---

UPC:

048598173959

Mfr Part Number:

65495

Country of origin (CO):

US

Color:

Black

Compressed Length:

18.3594 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

30.5 (unece.unit.INH)

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

Yes

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

LS80

Lower Mount Type:

Loop (Eyelet) Bushing and Sleeve

Mounting Hardware Included:

No

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Center of Loop

Travel Length:

12.141 (unece.unit.INH)

Upper Mount Code:

LS87

Lower Mount Code48:

LS80

Upper Mount Code74:

LS87

Lower Mount Type49:

Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 1.3/4" Sleeve OAL

Upper Mount Type75:

Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL
