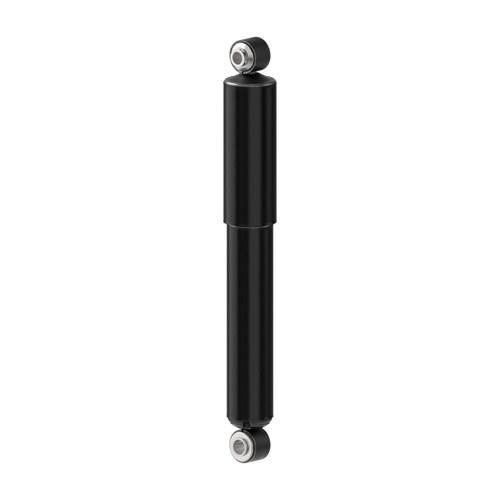

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

A direct-fit front replacement for International 9000i-series and 9900i/9900ix on-highway trucks, the Magnum is backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

• For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
• Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
• Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
• Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
• Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
• Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
• Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: International 9100i SBA (2000-2003), International 9200i SBA (2000-2011), International 9400i SBA (2000-2011), International 9900i (2000-2018), International 9900ix (2000-2009). All fitments are front position.

---

Cross References:
International Harvester (IHC): 3581107C1, International Harvester (IHC): 3581109C1, International Harvester (IHC): 3584535C3, International Harvester (IHC): 6127705C1, Monroe Shocks & Struts: 12323, Sachs: 315547, KYB: 341623, Navistar: 3581106C1, Navistar: 3581106C2, Navistar: 3581106C3, Navistar: 3581106C4, Navistar: 3581107C1, Navistar: 3581107C2, Navistar: 3581107C3, Navistar: 3581109C1, Navistar: 3584535C3, Navistar: 3584535C4, Navistar: 6127705C1, NAPA Shocks: 65147, Gabriel: 85924, Gabriel: 89457, Gold Shock Absorber: 9180137, FCS: F347221, Meritor: M85924, Navistar: F347221, Dayton Parts: 44185924, Fleetrite: AMS65147, 65147

---

UPC:

048598170477

Mfr Part Number:

65147

Country of origin (CO):

CN

Color:

Black

Compressed Length:

13 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

20.25 (unece.unit.INH)

Finish:

Painted

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

No

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

LS54

Lower Mount Type:

Loop (Eyelet) Bushing and Sleeve

Mounting Hardware Included:

No

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Center of Loop

Travel Length:

7.25 (unece.unit.INH)

Upper Mount Code:

LS53

Adjustable Damping4:

No

Foam Cell Design38:

No

Lower Mount Code48:

LS54

Upper Mount Code74:

LS53

Lower Mount Type49:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL

Shaft Diameter61:

18 MM

Upper Mount Type75:

Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL
