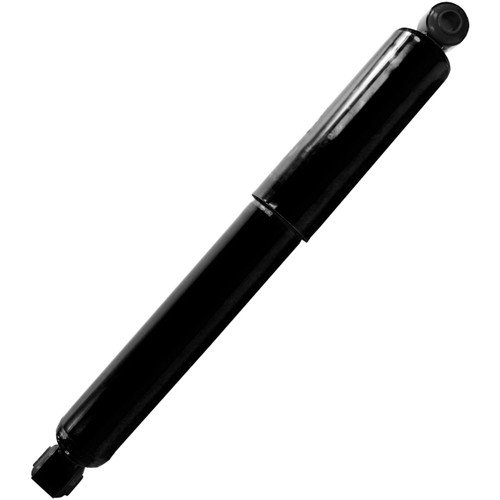

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

A proven front replacement for Thomas Saf-T-Liner and Thomas Transit Liner school and transit buses, the Magnum is backed by Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

• For Hardworking Commercial Vehicles: Designed for high mileage and severe use class 6-8 trucks and buses.
• Consistent Ride: All-weather fluid with special additives handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• Exceptional Handling: 10-Stage valving tuned per vehicle; larger 1-3/4-in. bore for more efficient damping and a smoother ride (most applications).
• Strong and Durable: Shouldered and bonded bushing with sleeve prevents bushing walkout; arc welds up to 360° for durability.
• Built to Last: Hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• Longer Service Life: PTFE-coated bearing and nitrocarburized piston rod for durability and extended service life (most applications).
• Reduced NVH: Exceptional control isolating impact-related noise, vibration, and harshness under most driving conditions.
• Improves Performance: Nitrogen gas-charge maintains tire-to-road contact by reducing aeration and shock fade.
• Buy with Confidence: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Thomas Saf-T-Liner (1991-2016), Thomas Transit Liner (1992-2020). All fitments are front position.

---

Cross References:
PRT HD: 170215, Sachs: 311229, Sachs: 315617, Sachs: 471700000449, Sachs: 471700000470, Thomas Built Buses: 61300224, Freightliner: 61300224, NAPA Shocks: 65140, Monroe Shocks & Struts: 66406, Gold Shock Absorber: 8160114, Gabriel: 85006, Automann: A85918, Bulldog HD: HD12150024, Meritor: M85918, Meritor: M89449, PRT HD: A85918, Dayton Parts: 441859185140, 65140

---

UPC:

048598170408

Mfr Part Number:

65140

Country of origin (CO):

CN

Color:

Black

Compressed Length:

14.375 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

22.5 (unece.unit.INH)

Finish:

Painted

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

No

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

LS86

Lower Mount Type:

Loop (Eyelet) Bushing and Sleeve

Mounting Hardware Included:

No

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Center of Loop

Travel Length:

8.125 (unece.unit.INH)

Upper Mount Code:

LS86

Adjustable Damping4:

No

Foam Cell Design38:

No

Lower Mount Code48:

LS86

Upper Mount Code74:

LS86

Lower Mount Type49:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.5/16" Sleeve OAL

Shaft Diameter61:

18 MM

Upper Mount Type75:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.5/16" Sleeve OAL
