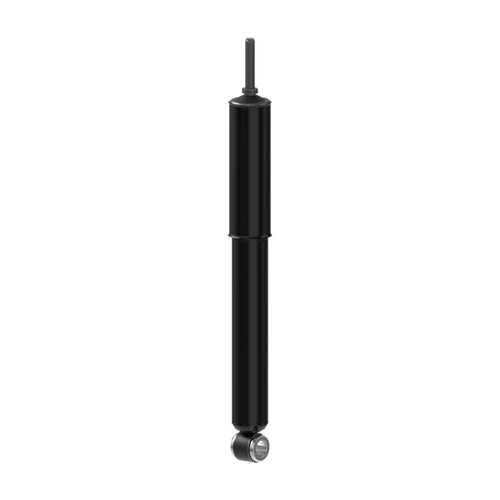

The Monroe® Magnum® Front Suspension Shock Absorber for class 6-8 vehicles is the first gas-charged, large-bore shock designed for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today's heavy-duty truck suspension systems.

Built for severe use class 6-8 trucks, the Magnum front shock delivers consistent performance for Sterling Truck and late-1990s Ford AT/LT/L series commercial platforms with 10-stage valving.

• FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle high mileage and severe use class 6-8 trucks and buses.
• CONSISTENT RIDE: All-weather fluid handles extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications).
• EXCEPTIONAL HANDLING: 10-Stage valving tuned to each vehicle; larger 1-3/4-in. bore for efficient damping (most applications).
• STRONG AND DURABLE: Shouldered and bonded bushings protect from bushing walkout; arc welds up to 360° for durability.
• BUILT TO LAST: Robust hydraulic lock-out prevents over-extension of air bags and protects the seal assembly (most applications).
• LONGER SERVICE LIFE: PTFE-coated bearing and nitrocarburized piston rod for long-lasting durability (most applications).
• REDUCED NOISE, VIBRATION AND HARSHNESS: Exceptional control isolating NVH under most driving conditions.
• IMPROVES PERFORMANCE: Nitrogen gas-charge reduces aeration and shock fade.
• BUY WITH CONFIDENCE: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty.

Common Fits: Compatible with front suspension on 1999-2008 Sterling Truck SC8000 Cargo, LT8500, LT9500, and AT9500, 2003-2006 Sterling Truck SC7000 Cargo, and 1996-1998 Ford AT9513, L8511, L8513, L9513, L9522, LT8513, LT9501, LT9513, LT9522, AT9522, and FT900.

---

Cross References:
Workhorse: W0011635, Freightliner: 1615219000, PRT HD: 170213, Neway: 57365426, Mack: 650426MT, NAPA Shocks: 65123, Monroe Shocks & Struts: 65426, Monroe Shocks & Struts: 70323, Monroe Shocks & Struts: 70324, Gabriel: 89438, Gold Shock Absorber: 9180238, Automann: A85054, Navistar: AMS650426, FCS: F347319, Ford: F6HT18045AA, Ford: F6HT18045AB, Ford: F6HZ18124A, Ford: F6HZ18124H, Bulldog HD: HD12150128, Meritor: M85054, Haldex: SA65123, NAPA Shocks: 57365426, 65123

---

UPC:

048598170231

Mfr Part Number:

65123

Country of origin (CO):

CN

Color:

Black

Compressed Length:

14.875 (unece.unit.INH)

Cylinder Color:

Black

Cylinder Finish:

Painted

Dust Shield Included:

Yes

Dust Shield Material:

Metal

Extended Length:

24.25 (unece.unit.INH)

Finish:

Painted

Gas Charged:

Yes

Grade Type:

Premium

Hydraulic Lockout:

No

Includes Bump Stop:

No

Internal Rebound Bumper:

No

Lower Mount Code:

LS54

Lower Mount Type:

Loop (Eyelet) Bushing and Sleeve

Mounting Hardware Included:

No

Shock Absorber Body End Measuring Point:

Center of Loop

Shock Absorber Rod End Measuring Point:

Center of Loop

Travel Length:

9.375 (unece.unit.INH)

Upper Mount Code:

LS54

Adjustable Damping4:

No

Foam Cell Design38:

No

Lower Mount Code48:

LS54

Upper Mount Code74:

LS54

Lower Mount Type49:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL

Shaft Diameter61:

18 MM

Upper Mount Type75:

Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
