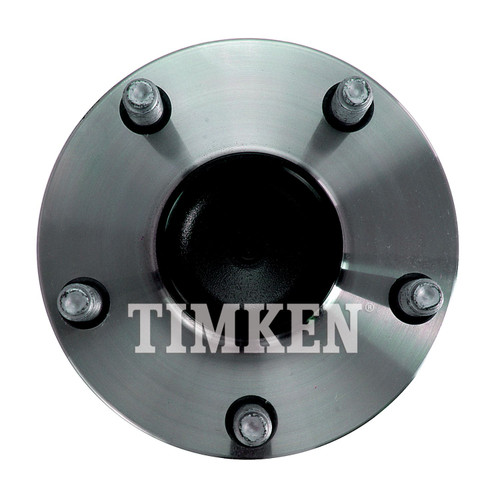

Hub Unit Bearing Assemblies: Preset, Pre-Greased And Pre-Sealed
Application: Ram (18-13)
Cross References:
CHRYSLER CORP.: 68185437AC, CHRYSLER CORP.: 68185437AD, FEDERAL-MOGUL: 515162, SKF: BR930553
Application: Ram (18-13)
Cross References:
CHRYSLER CORP.: 68185437AC, CHRYSLER CORP.: 68185437AD, FEDERAL-MOGUL: 515162, SKF: BR930553
- UPC:
- 085706046262
- Mfr Part Number:
- HA590628
- ABS Cable / Connector (CA / CO):
- CA
- ABS Type - Tone Ring / Sensor / Encoder (T/S/E):
- S
- ABS/Non-ABS (Y/N):
- Y
- Bearing Type:
- TAPER
- Bolt Circle Diameter B (in.):
- 8.06
- Bolt Circle Diameter B (mm):
- 165
- Bolt Circle Diameter H (in.):
- 6.49
- Bolt Circle Diameter H (mm):
- 164.9
- Bolt Quantity I:
- (4)
- Bolt Size I (in.):
- .496
- Brake Pilot Dia E (in.):
- 4.76
- Brake Pilot Dia E (mm):
- 120.93
- Driven - Non Driven (D / N):
- D
- Flange (#):
- (2)
- Flange Diameter A (mm):
- 204.75
- Flange Offset F (in.):
- 2.22
- Flange Offset F (mm):
- 56.39
- Flange Shape J:
- SQUARE
- Hub Pilot Dia G (in.):
- 4.72
- Hub Pilot Dia G (mm):
- 119.9
- Lug Bolts/Bolt Holes (#):
- Y
- Roll Form (Y):
- Y
- Spline Quantity:
- (35)
- Wheel Pilot Dia D (mm):
- 122.85
- Wheel Stud Qty:
- 8
- Wheel Stud Size (in.):
- .542
