Spicer 140-4-311-1X SPL140 Series Half Round End Yoke
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
140-4-311-1X
JOINT SERIES:SPL140

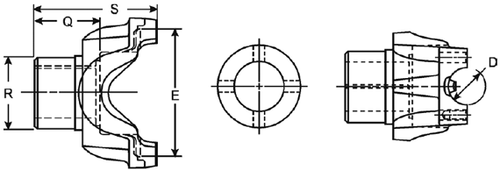

D DIMENSION:1.938
E DIMENSION:5.457
YOKE STYLE:STRAP
Q LENGTH THRU HOLE:2.323
R HUB DIAMETER:3.250
S CENTERLINE TO END:5.660
SPLINE COUNT:46 I
SPLINE OD:2.39
NOTES:
